Ducati releases its most powerful single-cylinder motor of all time
Rennie Scaysbrook | October 27, 2023
Ducati has announced it intends to produce a new single-cylinder engine for a new streetbike in 2024.

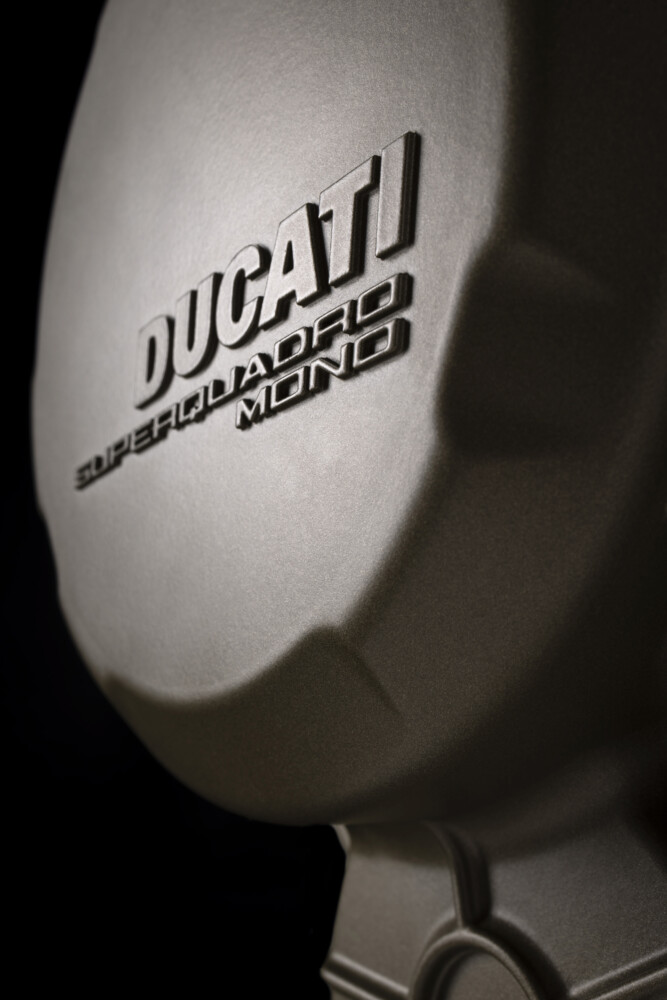

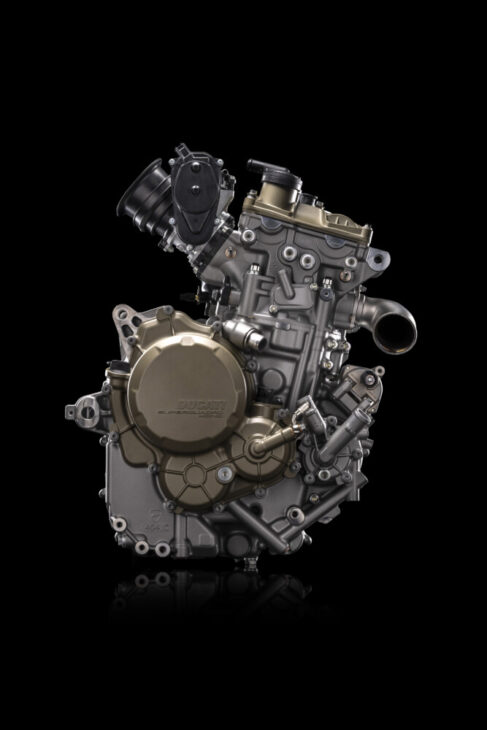

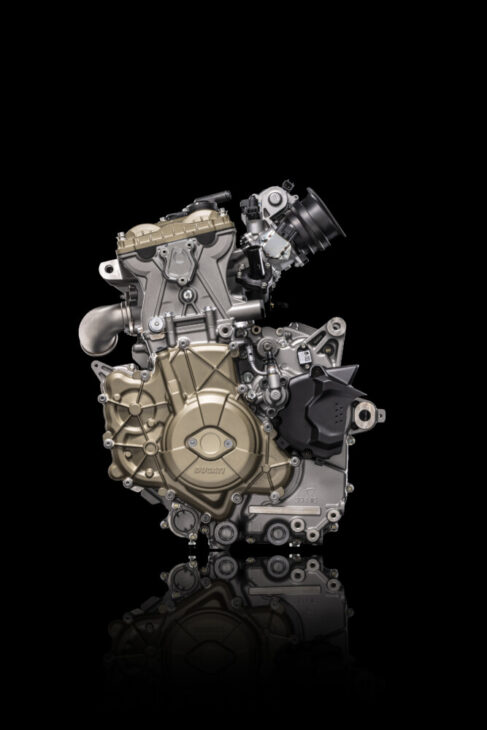

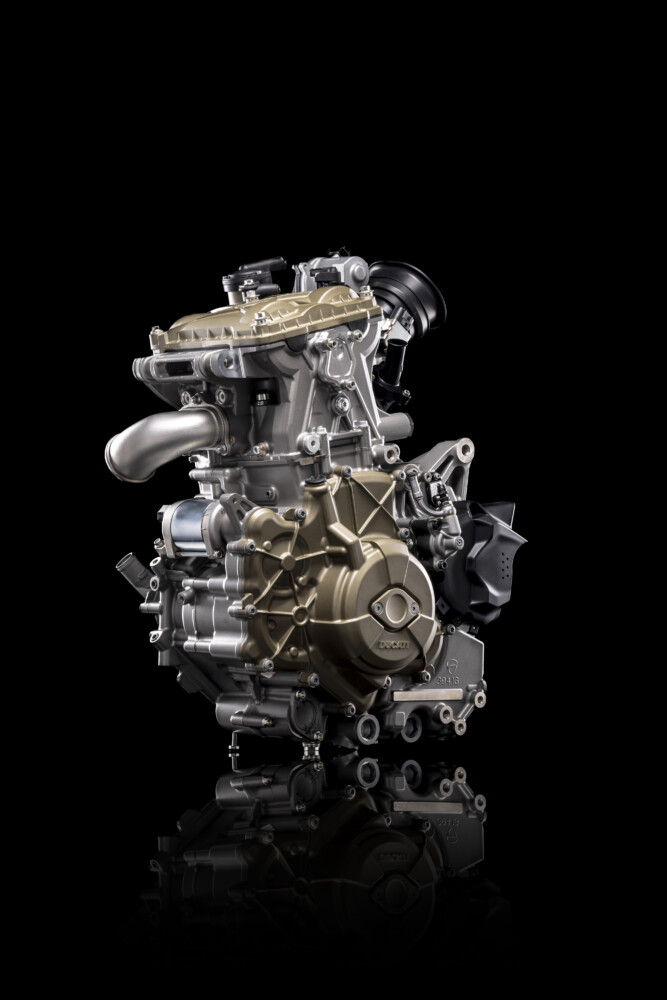

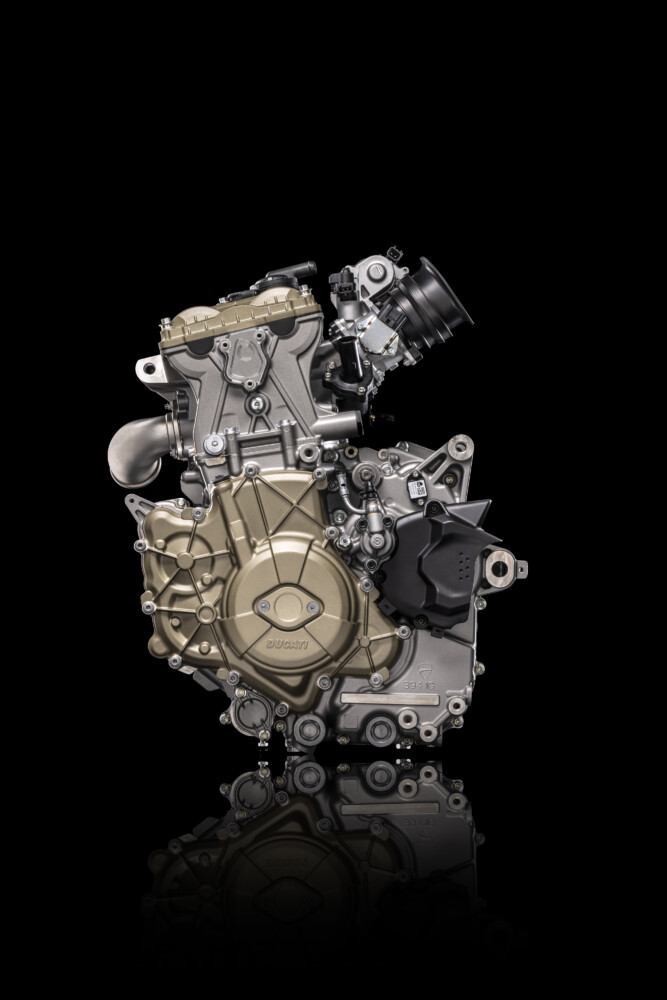

Dubbed the Superquadro Mono—Italian for Super Square Single—the new motor is essentially one-half of the 1285c V-twin ‘Superquadro’ of the 1299 Panigale, the last of Ducati’s V-twin superbikes from 2017.

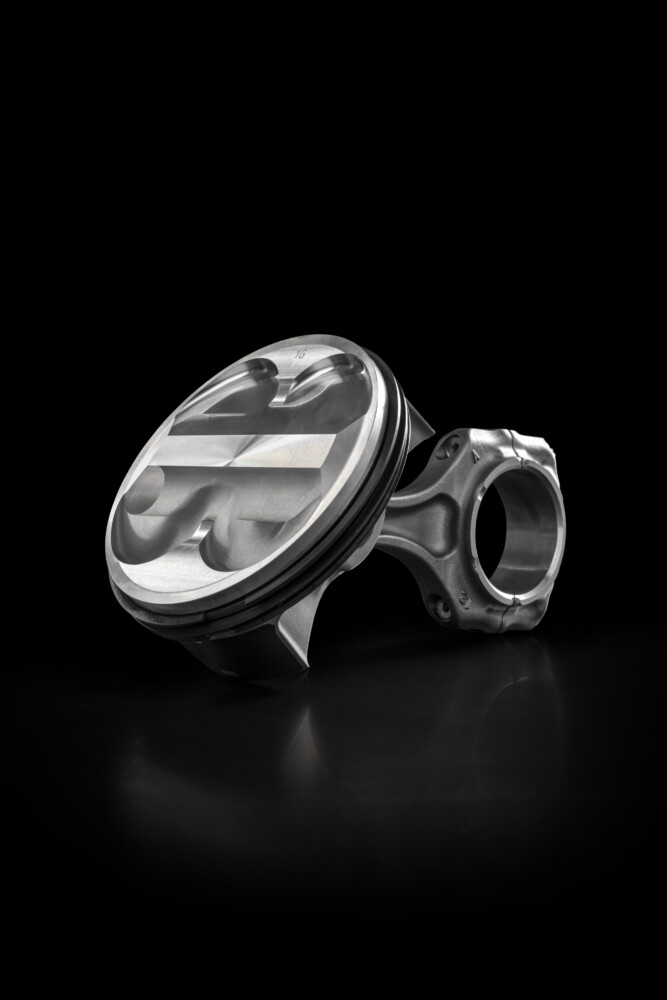

The Superquadro Mono uses the same 116mm piston and with a stroke of just 62.4mm for 659cc, ensures the new single can rev to 10,250 rpm. Ducati is claiming 77.5 hp in street trim and 85 hp with the racing exhaust that will come as an aftermarket product.
The engine will use the trademark desmodromic valve actuation system, with service intervals set for 18,000 miles for valve adjustment, roughly half that of the V4 motor range.
The new machine that will house the motor will be unveiled this Thursday, November 2, and we’ll bring you all the details when it drops.

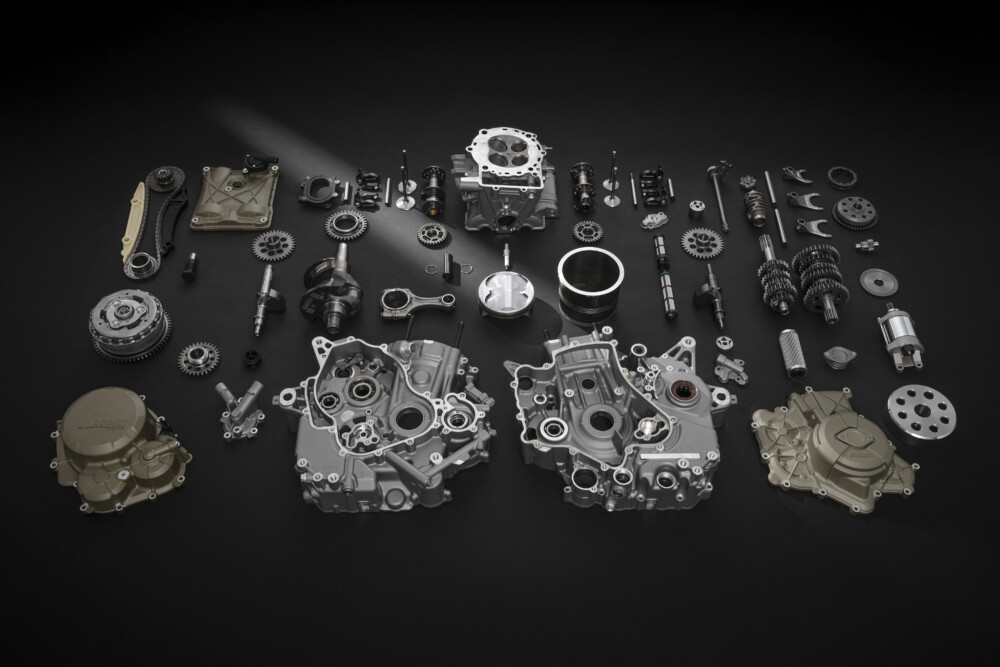

Main technical specifications of the Superquadro Mono
- 659 cc vertical single-cylinder engine
- Bore x stroke 116 x 62.4 mm
- Compression ratio 13.1:1
- Maximum power 77.5 hp (57 kW) at 9,750 rpm – 85 hp at 9,500 rpm with Termignoni racing exhaust
- Maximum torque 46 lb-ft (63 Nm) at 8,050 rpm – 49 lb-ft with Termignoni racing exhaust

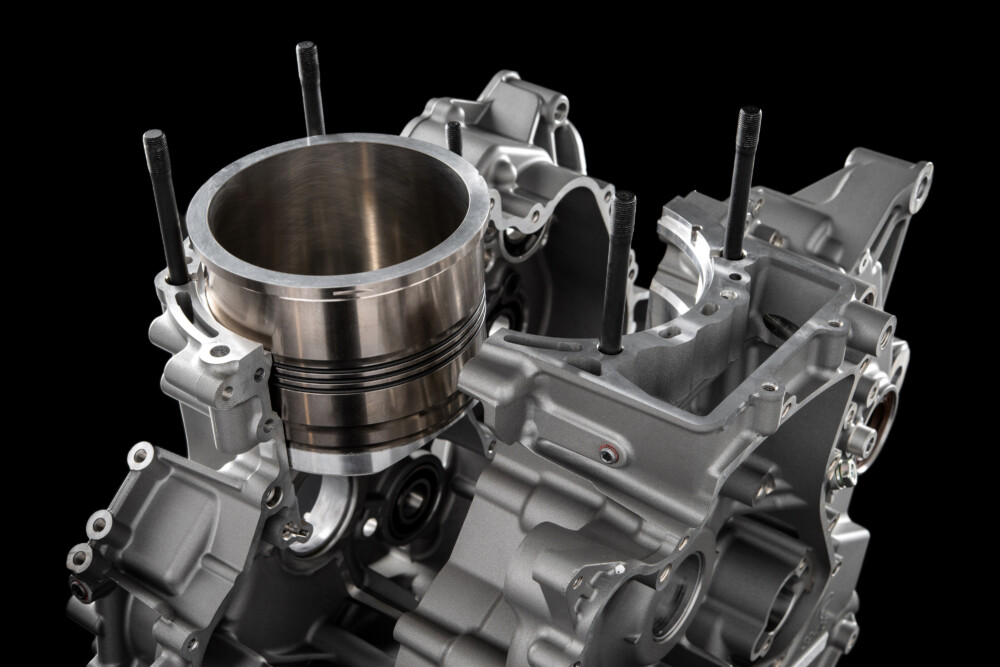

- Aluminum cylinder barrel
- Mixed chain-gear Desmodromic valve system with double overhead camshaft, 4 valves per cylinder. 46.8 mm titanium inlet valves, 38.2 mm exhaust valves.

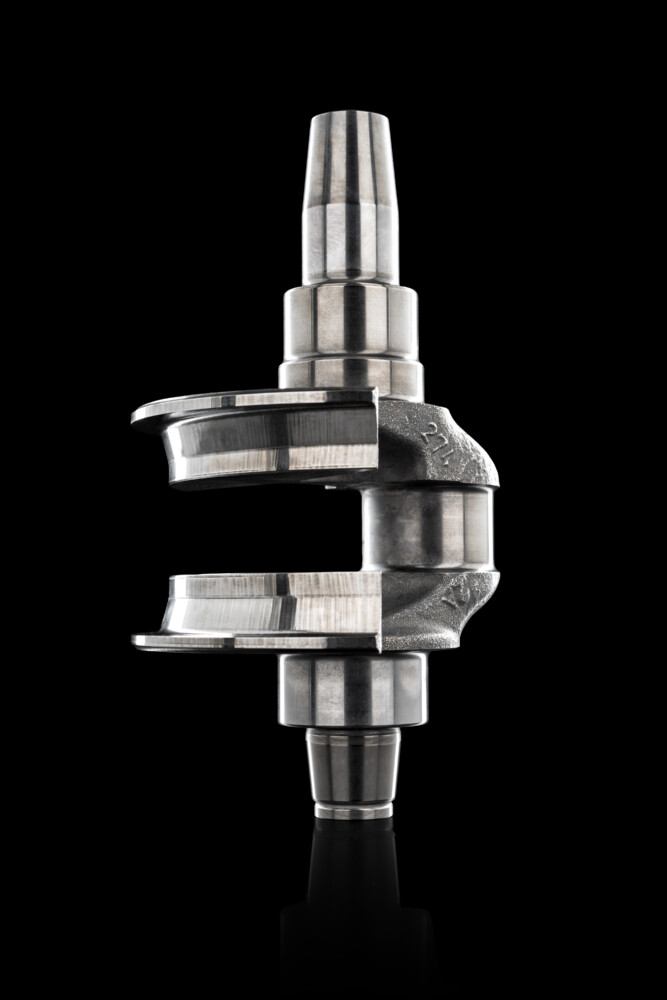

- Asymmetrical crankshaft mounted on differentiated diameter main bearings
- Double balancing countershaft with control function of the water and oil pumps
- Multi-disc oil-bath clutch, servo-driven and with anti-hopping function
- Semi-dry sump lubrication with delivery pump and recovery pump
- Fuel feed via oval section throttle body with an equivalent diameter of 62 mm
- Six-speed gearbox with the possibility of fitting the Ducati Quick Shift (DQS) Up & Down
- Oil change set at 9,000 miles
- Check and eventual adjustment of valve clearance set at 18,000 miles
