Alan Cathcart | July 20, 2017

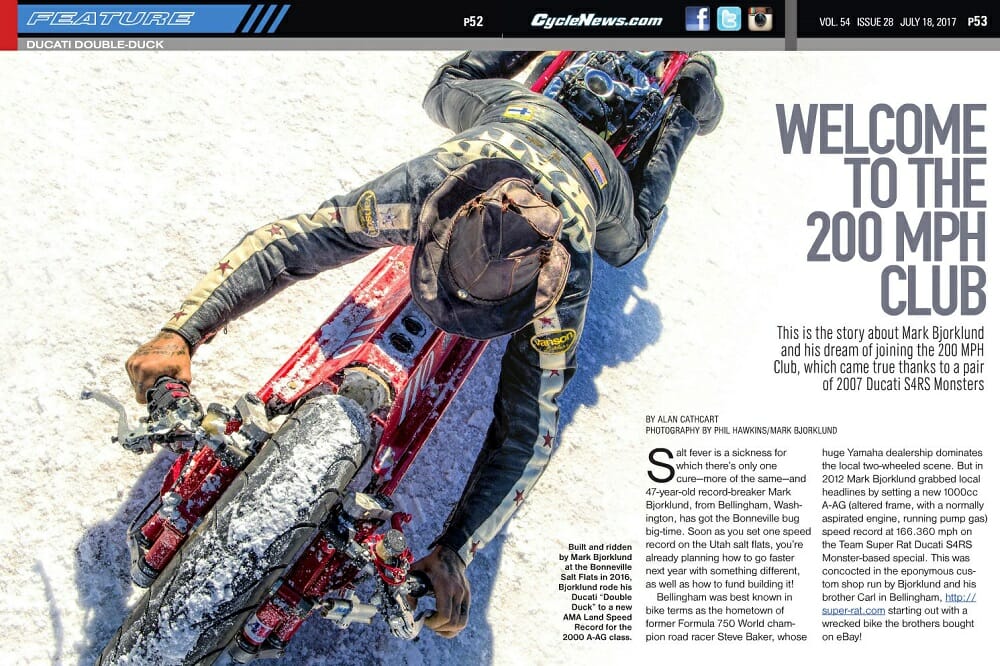

This is the story about Mark Bjorklund and his dream of joining the 200 MPH Club, which came true thanks to a pair of 2007 Ducati S4RS Monsters.
Salt fever is a sickness for which there’s only one cure—more of the same—and 47-year-old record-breaker Mark Bjorklund, from Bellingham, Washington, has got the Bonneville bug big-time. Soon as you set one speed record on the Utah salt flats, you’re already planning how to go faster next year with something different, as well as how to fund building it!
Bellingham was best known in bike terms as the hometown of former Formula 750 World champion road racer Steve Baker, whose huge Yamaha dealership dominates the local two-wheeled scene. But in 2012 Mark Bjorklund grabbed local headlines by setting a new 1000cc A-AG (altered frame, with a normally aspirated engine, running pump gas) speed record at 166.360 mph on the Team Super Rat Ducati S4RS Monster-based special. This was concocted in the eponymous custom shop run by Bjorklund and his brother Carl in Bellingham, starting out with a wrecked bike the brothers bought on eBay!
Click here to read this in the Cycle News Digital Edition Magazine.
PHOTOGRAPHY BY PHIL HAWKINS/MARK BJORKLUND
Until then, in spite of being the dominant European road-racing brand for so many years, Ducatis had always been strangers to the salt, with sightings of desmo V-twins at America’s annual festival of speed comprising the Bonneville Speed Trials, only very rare. But in setting an improbable desmodromic speed record on his much-modified 999cc desmo V-twin S4RS Monster, a 2007 bike, which has now officially become the World’s Fastest Monster, as a humble, relatively impecunious enthusiast Mark Bjorklund demonstrated that you don’t need to have copious sponsorship and liquid money to be successful in the pursuit of speed.
Yet nothing comes easy, and to create his record-breaking motorcycle Bjorklund had to invest some serious time and lots of ingenuity, as well as rely on the help of his brother Carl and Jason Omer, his co-constructors in building the Ducati, plus their friend Tim Clossey. But having achieved his ambition of writing his name in the record books in 2012, it was back to the day job helping maintain the Electron Hydroelectric Project https://en.wikipedia.org/wiki/Electron_Hydroelectric_Project inland from Bellingham, in between running Super Rat Customs in what spare time he had. But the dream of returning to the salt flats with another bike to go after a different set of records was never far from his mind—salt fever, right?! Let’s leave it to Mark to explain what happened next.
“I had so many customers at Super Rat keeping me busy aside from my full-time job at Electron Hydro, that it was impossible to focus on returning to Bonneville,” says Mark. “But I’m thankful for the work, and it does provide an income to help fund our land-speed projects. But after our successful visit to the salt flats in 2012, it wasn’t until January of 2014 that I could begin construction of the next bike. But what to build? Well, here I need to go back in time to 2006. I had studied the new Ducati Monster S4RS and it seemed absolutely brilliant. I had to have one, but it seemed selfish. My brother Carl and I had worked together on projects for 20 years, and we’re always doing stuff together. I had just finished pouring a huge concrete project where Carl had spent three months with me tying all the rebar, and for most of that he’d been hanging off scaffolding. The job had been very profitable, and it seemed like the best idea was to squander the profits immediately on two brand new motorcycles! So I bought a red 2007 S4RS Monster for myself, and a white one for Carl. These quickly became our favorite bikes, and we kept them perfect while using them hard.
“Okay, so now, back to 2014. I’d lain awake at night for three months prior to this moment, going over every detail in my head about how to build a bike that I could run over 200 mph on at Bonneville, and join the 200 MPH Club. But to begin with, I was only planning on using a single laydown engine. But then when I got to playing with a tape measure on the Ducati motor, a light bulb went off in my head—what if I put two Ducati engines together for this thing? Yes! And so it began. I asked Carl if I could borrow his Monster engine for a project I had in mind, and he thought it was a great idea! So I was off and running, plus, I’d be going after the 2000 A-AG record, which would mean I wasn’t trying to beat my own 1000 A-AG speed, which was nice!
“So to construct the Double-Duck Ducati I built a jig to bolt the engines together using new frame lugs I machined to be identical to the factory lugs. I welded gussets to the front steer tubes, and ran bolts through to center those on the frame table up front. Then I simply measured my body lying down to determine how long I needed the bike to be—it ended up with an 11-foot wheelbase, or 132 inches in length. I rarely use more than a quick scratched drawing when I’m building something, because I believe in the motorcycle creating itself organically as it’s being built.
“Once I had the four main tubes tacked in, Tim Clossey started coming over frequently to lay out the truss pattern for the frame, based on a typical bridge structure. We knew the weakest point would be in the center where all points meet. Also, each side had to be removable to be able to install and extract the engines. I have my certificates for stick and MIG welding but I’m inexperienced in TIG, so Tim and Carl did most of the frame welding, and I took on the front end and the exhaust system. I figured I may as well practice on my life, instead of someone else’s!
“Lots of cross bracing and torsional bracing went in to the frame, and the fuel cell became a structural component, along with the battery tray and top chest pad support. Everything eventually fell into place but with two of everything—two batteries, two fuel pumps, two throttle cables, two radiators, two oil coolers and two ECU engine management computers—but four round instrument gauges because they needed to be plugged in for the engines to run. I tried running the engines and then unplugging the gauges, but they both died immediately. Each gauge package had 25 small wires, meaning I would have to cut and splice and solder a total of 100 butt joints, so I decided not to! But then I couldn’t find a reasonable location for them to live, so that’s where they ended up, above each engine. Unfortunately, it’s drawn a lot of questions from people over and over again! I found that 1975 Chevy truck heater cores made perfectly sized radiators—the engine never ran hotter than 190 degrees, though the 25 feet of rad hose probably contributed to cooling volume!
“The real head scratcher was coupling the engines together. We studied the crankshaft ends and they were tiny, so we decided to extend the countershafts off the transmissions. This would entail shifting both transmissions at the same time, but also helped keep the drive chain cool by running at a much lower rpm than off the engines. Tim made these great threaded extensions with 16-tooth sprockets and an outer bearing support—it’s quite handy having a good friend next door who’s a master machinist as well as a genius! I managed to get lugs on the frame just right to hold the outer bearing support, and found some nice thrust bearings that could handle the load. I could go on and on about every little component on a totally unique motorcycle, but let’s get to the racing, which is the whole point of it all!
“I finished tightening the last bolt exactly eight months after starting the project, and three days before the 2014 Bonneville Motorcycle Speed Trials. The bike had never been ridden. I was so engrossed in the build and consumed by every detail of it, it’s as if I completely forgot that this thing was supposed to be speeding down the salt flats with me aboard it! So anyway, I rode it 30 yards up the parking lot and didn’t fall over, so then we packed it on the flatbed trailer and off to Bonneville we went.
“The current record in 2000 A-AG at the time was around 159 mph, so not having ridden it further than 30 yards before my first run, I purely wanted to test the machine and learn how to ride it. It’s very awkward and uncomfortable to be laying down on your front all stretched out, with your feet above your head and the chin of your helmet six inches from the front tire. You have zero input on anything; you just hang on. So I decided to go slow while I got used to this, and ‘just’ do a 100 mph test, so I kept it at barely one-quarter throttle. It seemed okay, so I completed the run and then pulled off the track to find out from the course workers I’d done 169 mph. My first pass trying to go slow I’d smashed the record by 10 mph!
“So I kept running for five days, and ended up with a top speed of 197 mph with a return of 191, which averaged out to 193 mph. Okay, hugely faster than the old record, but not 200 mph, which was what I really wanted. That 2014 season the salt was very wet and sloppy. Everyone struggled for traction, and the long course had only two miles of run-up. I was extremely happy with the results of our efforts, but I had missed the 200 mph mark that was the whole goal of this project. But then two more years went by while I waited for a chance to run on the salt flats again, because 2015 was rained out. I tried to go to every single event that year, and like everyone else, endured the frustration and disappointment of weather cancelations. But then finally, in 2016 we could run again. For two years I had dreamed and planned in my head exactly how I would ride this motorcycle with three miles of run-up, and great track conditions. I hadn’t changed a thing on the bike other than fitting new chains and checking all the bearings. It was already a challenge to ride, and extremely difficult to handle—riding it entailed about 70% fear and 30% fun! But the mountain stands in front of you, and you must conquer it.
“So my two years of planning went out the window, and as soon as I got to Bonneville I changed to one tooth less in the back sprocket, which geared me for about 223 mph. Older, wiser men told me not to, but I did it anyway. I think when you unload your race bike at the track you grow fangs! So I thought I would take a nice mature pass down the track to start out with, and at least learn how to ride the bike again, after all, I’d only ever made five passes down the salt on it, and I needed to gain some familiarity with what was such an awkward machine to ride. But when you leave the line, you leave all your good intentions behind!”
“I was entering mile three, and I finally had the Double Duck pinned wide open somewhere around 190 mph, when it spun out and pitched sideways—it was a big slide! In my head I started laughing and thought, ‘oh shit, I’m 11 feet long, and this isn’t looking good!’ So I backed off the throttle a hair, and tried holding it there. By the time I saw the flying mile markers my helmet was shaking so violently I just tried to tuck it down behind the front tire, thinking, ‘wow, this feels like the fastest I’ve ever gone!’ I left the traps and slowed until I could pull off the course and stop to wait for Carl and the back-up crew to pick me up. A young lad pulled up in a truck and said, ‘hey, want a water?’
‘Yeah, great, thanks. Did you hear the radio?’
He said, ‘yeah, you did a 205!’
“I threw my arms into his open window and gave him a big hug, then I pointed up to the sky and said, thank you Jesus! I’m still alive, and I’m in the 200 MPH Club!”
“There are many stories I could tell about each of the runs on the bike. Most of them I couldn’t see properly because of the salt spray off the front tire, and it’s hard to keep it straight because the horizon is always moving. It was very stable at high speeds with that steering arrangement, but you could feel the rear tire spinning up repeatedly. I didn’t have any gauges to look at in front of me—they were out back! So I could only go by vibration because I couldn’t hear anything but wind noise. But I’m just so happy to be alive. I went off-course twice, and ran over lots of flags, but only broke my brake reservoir, which kept falling off, so I did most of the passes with no brakes available. Didn’t seem to affect the performance any!
“The beauty of a project like this is that it begins with one idea: ‘I wonder if I could make this work?’ Well, two engines are better than one, right? Okay, so let’s try to go 200 with no streamlining, and eight months later you’re staring at the bike, and going ‘oh, shit, now I have to ride this thing!’ In fact, I wanted someone else to ride it so I could compare notes with another rider, but it was hard to find anyone that wanted to have a go at it! But I tell you, it feels magnificent. It’s the closest you can come to feeling like Superman!”
The record-breaking double-Ducati’s pair of identical liquid-cooled 999cc eight-valve Testastretta desmo V-twin engines are unmodified just as they left the Bologna factory in the S4RS Monster street bikes shipped to the USA in 2007, and each uses an twin-megaphone exhaust system created by Mark. They’re each fitted with a Power Commander, plus an auto-tune to help combat the problems of altitude, for at 4291 feet above sea level, Bonneville poses an extra challenge in countering the 13% loss in horsepower on a normal engine occasioned by the thinner air at this elevation.
“The engines were dyno tuned at sea level with reflashed race computers, but are technically bone stock,” says Mark. “I didn’t change the guts. They have 128 bhp each at 9500 rpm, so I think after considering a parasitic loss that comes with joining two engines together, I have to assume I was getting at least 220 bhp to the back wheel.”
Mark Bjorklund’s new 2000 A-AG class AMA Land Speed Record for the flying mile with the Ducati Double-Duck stands at 203.741 mph, with a best one-way pass of 205.827 mph. To put this in perspective, the current official FIM record for 2000cc four-cylinder Unstreamlined Normally Aspirated bikes is 209.598 mph set by Jamie Williams on his Suzuki Hayabusa in 2012, while the twin-cylinder FIM mark belongs to Johnny Cortopassi on a Harley-Davidson VRSCR V-Rod at 176.869 mph set in 2013. So if Mark Bjorklund had gone through the bureaucracy and expense of obtaining an FIM International license, he’d have demolished the previous Harley-Davidson World Record with his self-built Ducati special.
“But I had one run of 210.5 mph on Thursday, the final day, after my record runs on the opening Sunday,” says Bjorklund. “Unfortunately, I didn’t qualify for the return run because I missed the traps and ran off course; I was flying kind of blind from my chinstrap being too loose so my helmet slid up, and I couldn’t see where I was going for a few seconds! But I’m in the record books with that 203.741mph speed. Hallelujah!”
Amen to that. CN
